Products NAKAYAMA

Nakayama, specialized in mobile rock crusher

Features of Dendoman

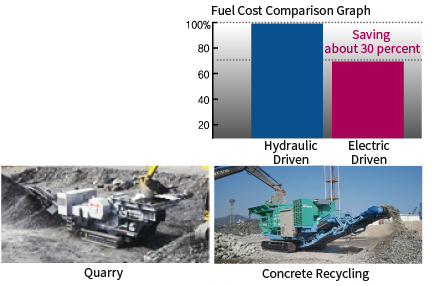

  1. High Fuel Efficiency! Save of 30% (Comparing with engine-operated)
  2. Easy to maintain and few maintenance!
  3. Improved crushing ability!

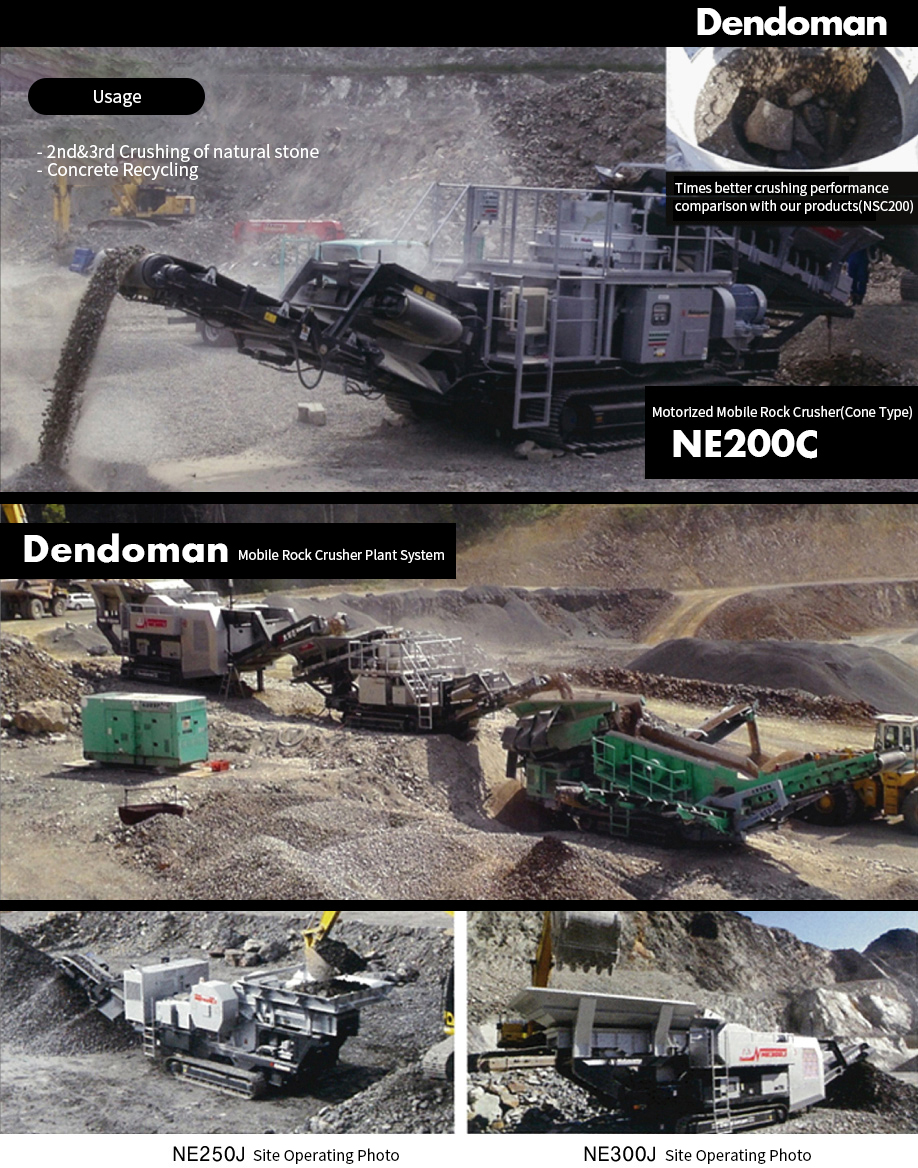

Usage
  1. Quarry
  2. Concrete Recycling

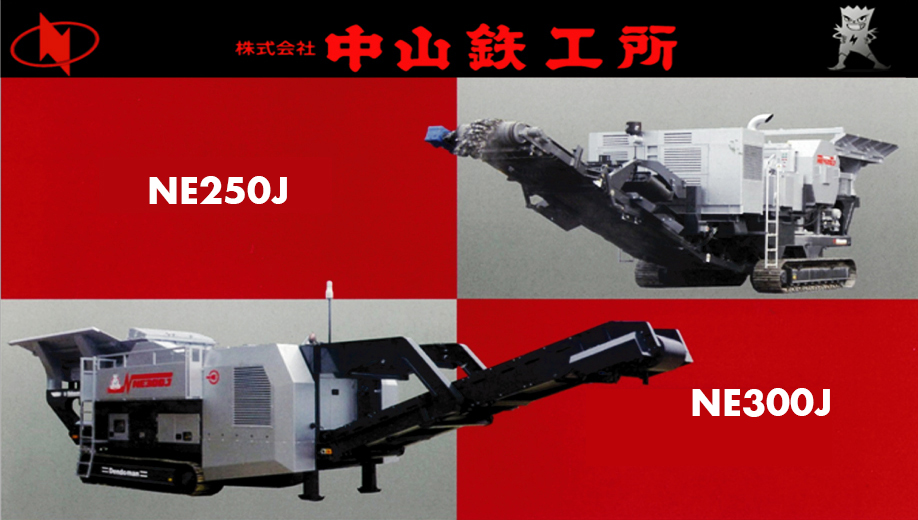

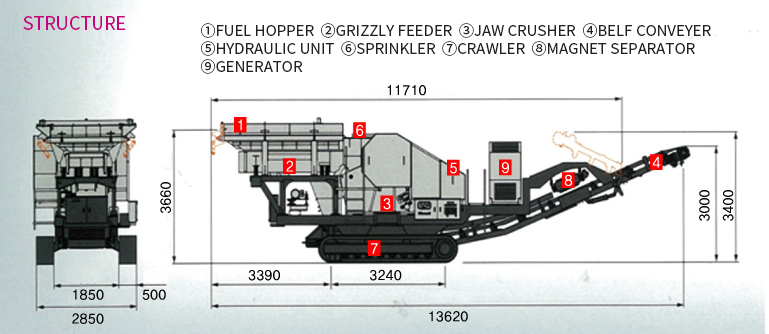

NE250J SPECIFICATIONS & CAPACITIES



Model Jaw Crusher Grizzly Feeder Approx. Capacity
(t/h)
Max. Feed Size T*W*L(mm) Total Weigh(t) Generator
Model Max. Feed Size(mm) Model Through Size W*L(mm) Generator Crush Travel
Yes No
NE250J AC4220B 500*1050 GVF1030HA 1000*3000 50~250 450*800*1000 38 35 Electric Hydraulic

*The processing capacity depends on the condition, size and particle size of the raw material.
*The specifications and dimensions of this equipment are subject to change without notice for improvement.

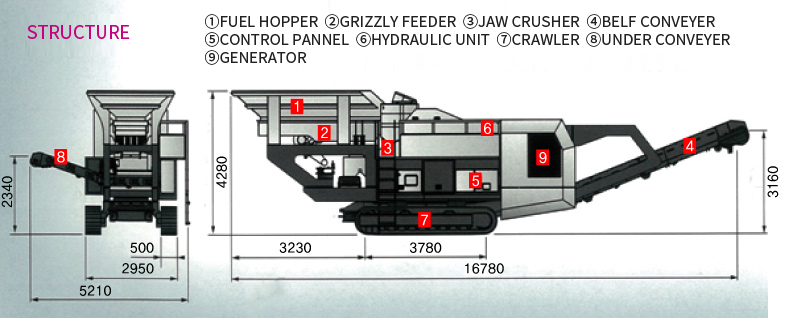

NE300J SPECIFICATIONS & CAPACITIES



Model Jaw Crusher Grizzly Feeder Approx. Capacity(t/h) Max. Feed Size T*W*L(mm) Total Weigh(t) Generator
Model Max. Feed Size
(mm)
Model Through Size W*L(mm) Generator Crush Travel
Yes No
NE300J RC4228 650*1050 GVF1040HA 1000*4000 150~400 600*950*1000 55 52 Electric Hydraulic

*The processing capacity depends on the condition, size and particle size of the raw material.
*The specifications and dimensions of this equipment are subject to change without notice for improvement.
